Electrical Panel Relocation in Connecticut: Bringing Older Homes Up to Modern Electrical Code

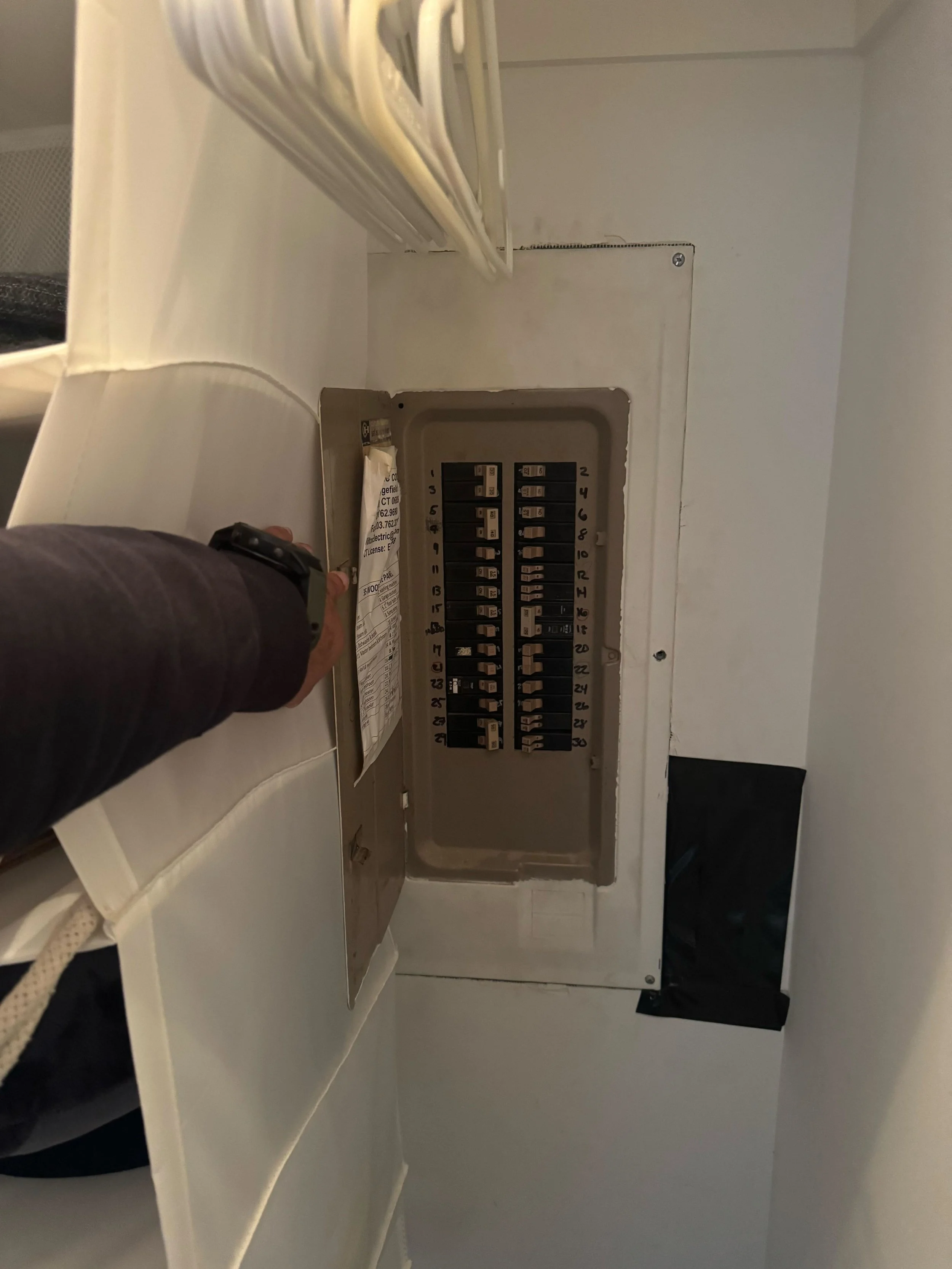

Outdated electrical panel in Westport, CT that needed to be upgraded but it was inside a tight bedroom closet which is against code.
Older homes throughout Fairfield and New Haven counties often have electrical systems installed decades ago. While these systems may have worked well when originally built, modern electrical code requirements and home renovations sometimes make an electrical panel relocation necessary.
This year with the high demand for EV chargers we received more calls for homes that needed an electrical service upgrade, and, we recently completed a few residential projects involving electrical panel relocation and service reconfiguration to improve accessibility, safety, and code compliance in Stamford, and Westport that I will post some photos from below.
.
Why Would an Electrical Panel Need to Be Relocated?
There are several reasons homeowners in Stamford, Westport, Trumbull and surrounding Fairfield County communities may need an electrical panel moved:
Existing panel location no longer meets electrical code requirements
Renovation or remodeling projects affecting panel access
Insufficient working clearance around electrical equipment
Older installations that create maintenance challenges
Upgrading an aging electrical system for long-term reliability
In the project in Stamford, we evaluated multiple installation options before determining the best solution for the homeowner and property layout. We gave customer 3 options which were relocating it to the other side of the room in two areas, or the exterior of the home, and after answering all of their questions they chose the option they were the most comfortable with. This project required an entire upgrade from 100 to 200 amps as well besides just a new panel to be able to add the EV charger and other items that customer wants in the near future.

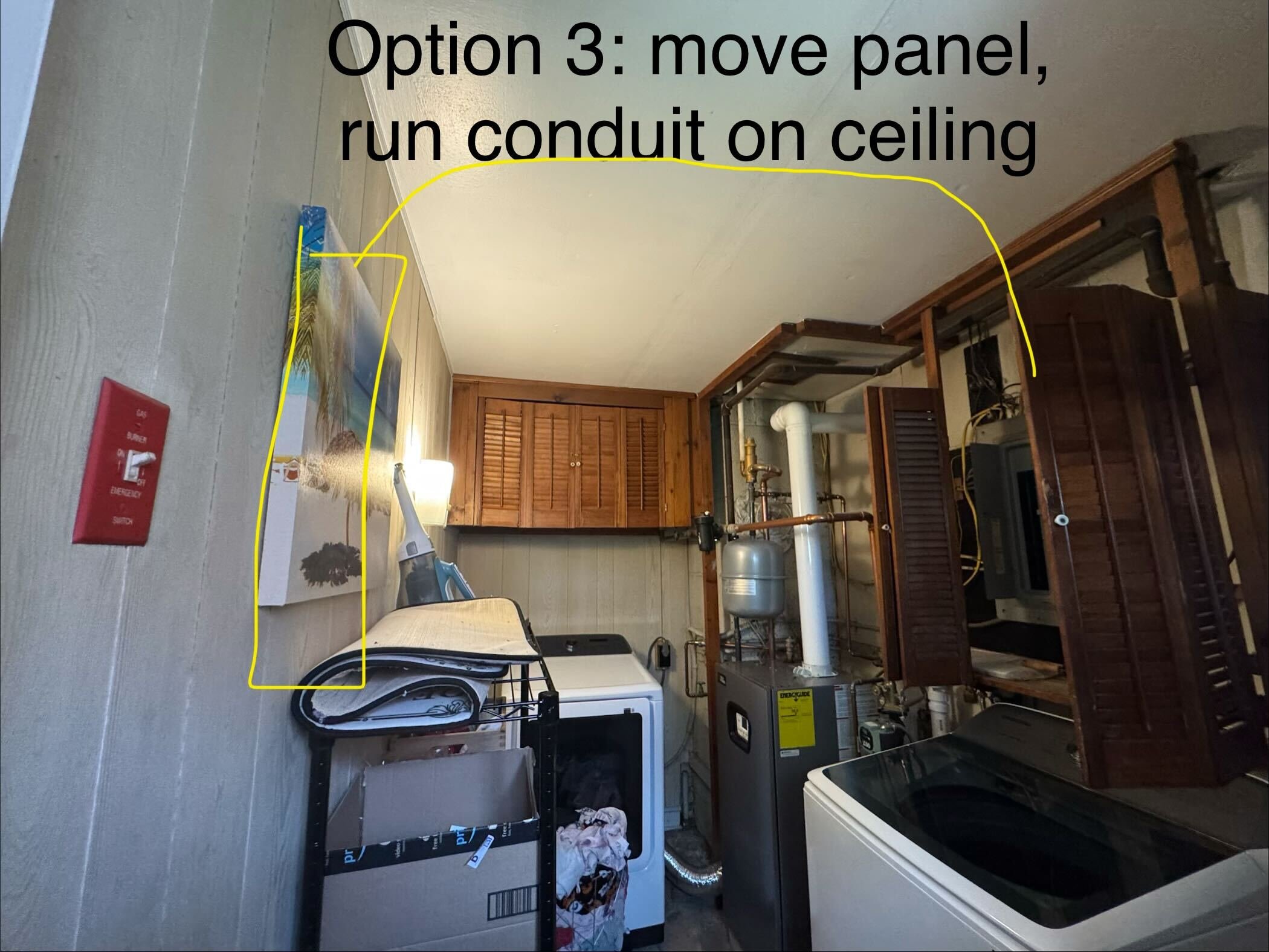

The chosen option involved relocating the electrical panel to the other side of the room by running conduit across the ceiling area to recessed new wiring and panel. After evaluating accessibility, wiring pathways, and overall appearance, we developed a cleaner installation strategy that provided a better long-term solution.
In the project in Westport, the owner had the electrical panel inside the bedroom closet which is no longer allowed by code, so we relocated to the living room by rerouting the circuits through the crawlspace.
What Goes Into an Electrical Panel Relocation?
Relocating an electrical panel is significantly more involved than simply moving equipment from one wall to another.
1. Planning the New Panel Location
Electrical panels must meet required working clearances, accessibility standards, and modern code requirements. Proper planning is critical before any wiring begins. One of the biggest violations I see is the lack of 3 feet of working clearance in front of the electrical panel which starts at floor level.
As you can see the current panel besides being over 50 years old and no longer covered by insurance, it was on top of the washer, behind a boiler water pipe, and next to a gas line. We definitely could not leave it in the same place - Stamford, Connecticut.
2. Installing New Conduit Pathways
For this installation, new conduit pathways were installed through concealed spaces to create clean and protected routing for feeders and branch circuits.
Proper conduit sizing and installation methods help ensure reliability and future serviceability.

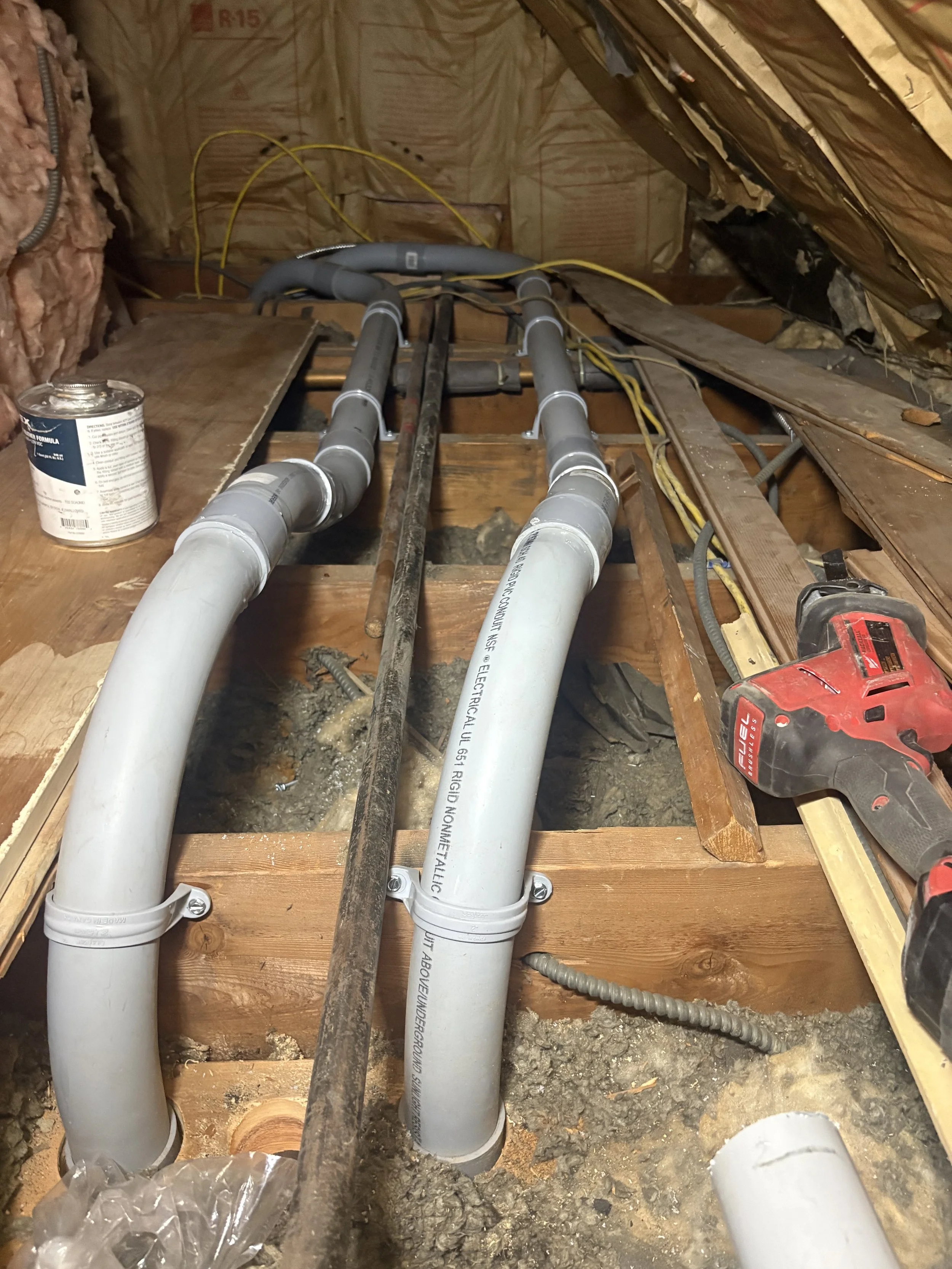

We found a crawlspace behind the bedroom closet and were able to route the PVC conduits there. We usually try to make customer bends but had to rely on factory bends due to the hard to get into attic space, but we were able to meet code and pass inspection all the while keeping customer happy.
3. Extending and Reconnecting Circuits
Existing electrical circuits often need to be extended, rerouted, and carefully identified during a panel relocation project.
Organization matters. A clean panel layout improves troubleshooting, maintenance, and future upgrades.
Depending on how far the panel is being relocated we need to replace regular breaker for AFCI breakers and in some cases install a different type of electrical meter setup.

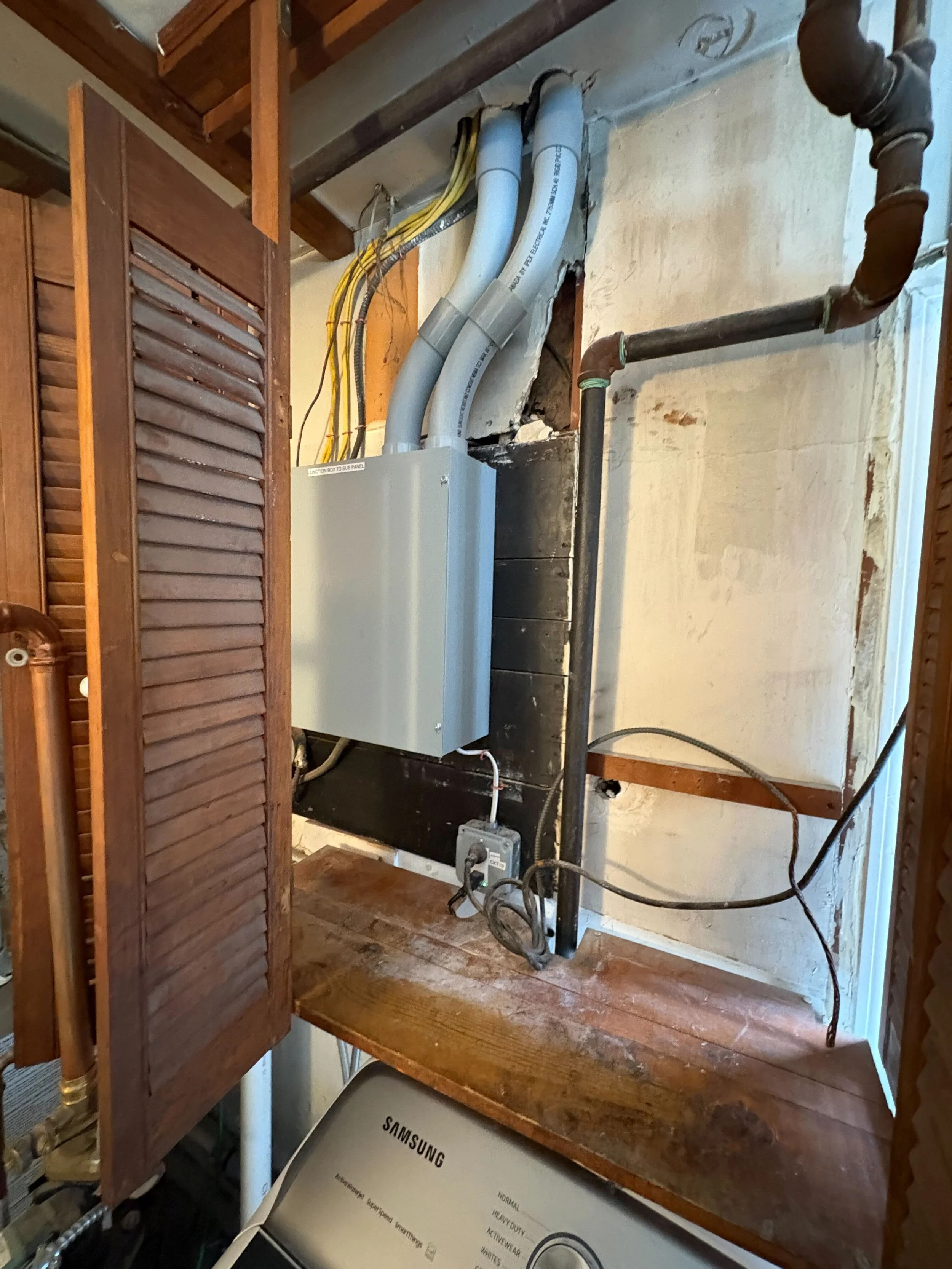

Junction box in the location where the old panel was at the job in Stamford, CT
4. Delivering a Clean Finished Product
Quality electrical work goes beyond functionality.
Our goal on every project is to provide homeowners with electrical installations that are:
✔ Safe
✔ Code compliant
✔ Organized and serviceable
✔ Built for long-term reliability

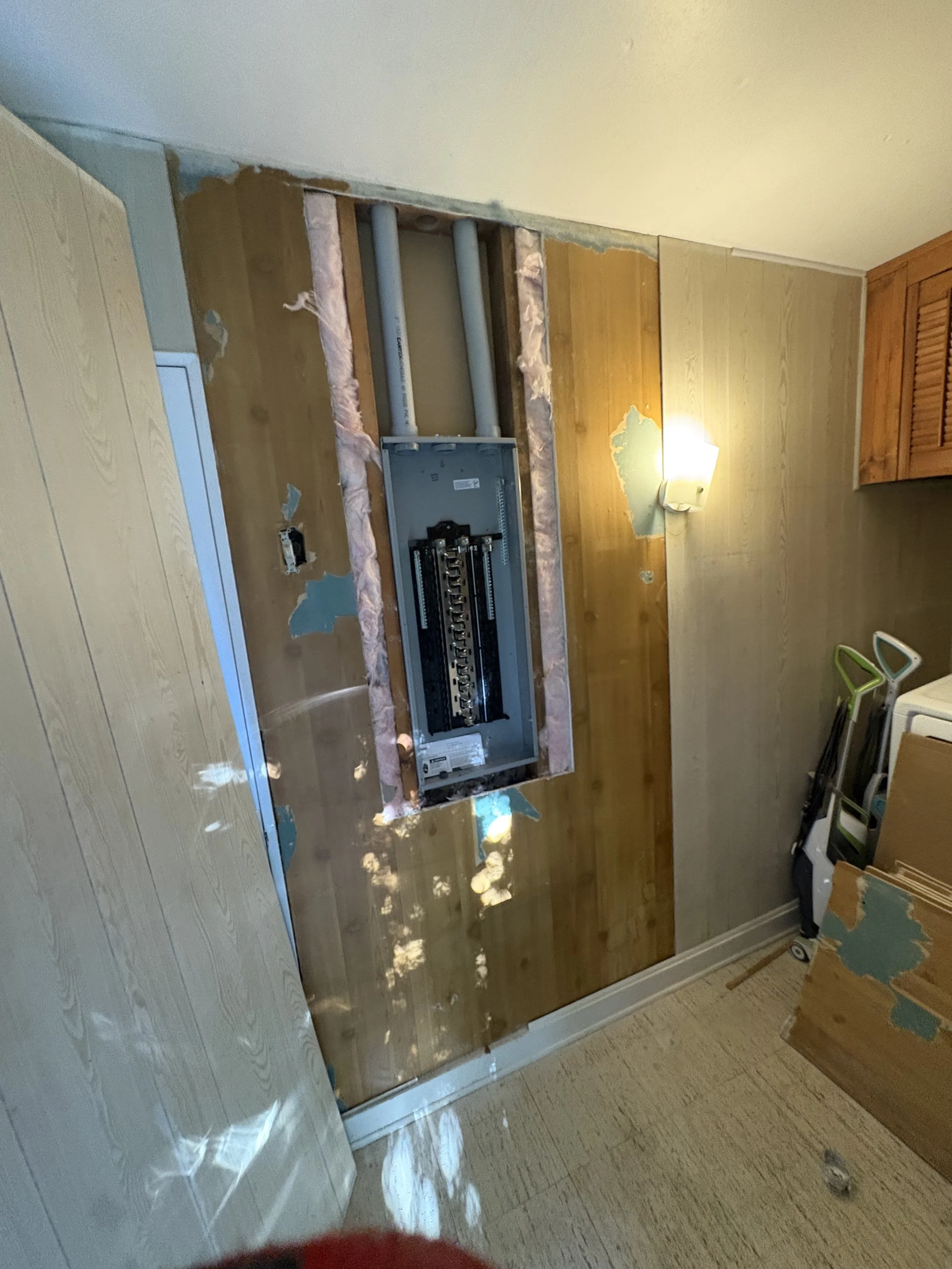

At the Stamford project before turning off power we prepped the panel in the wall. We had to remove the paneling carefully to recessed the electrical panel, and then put it back once panel was completed.

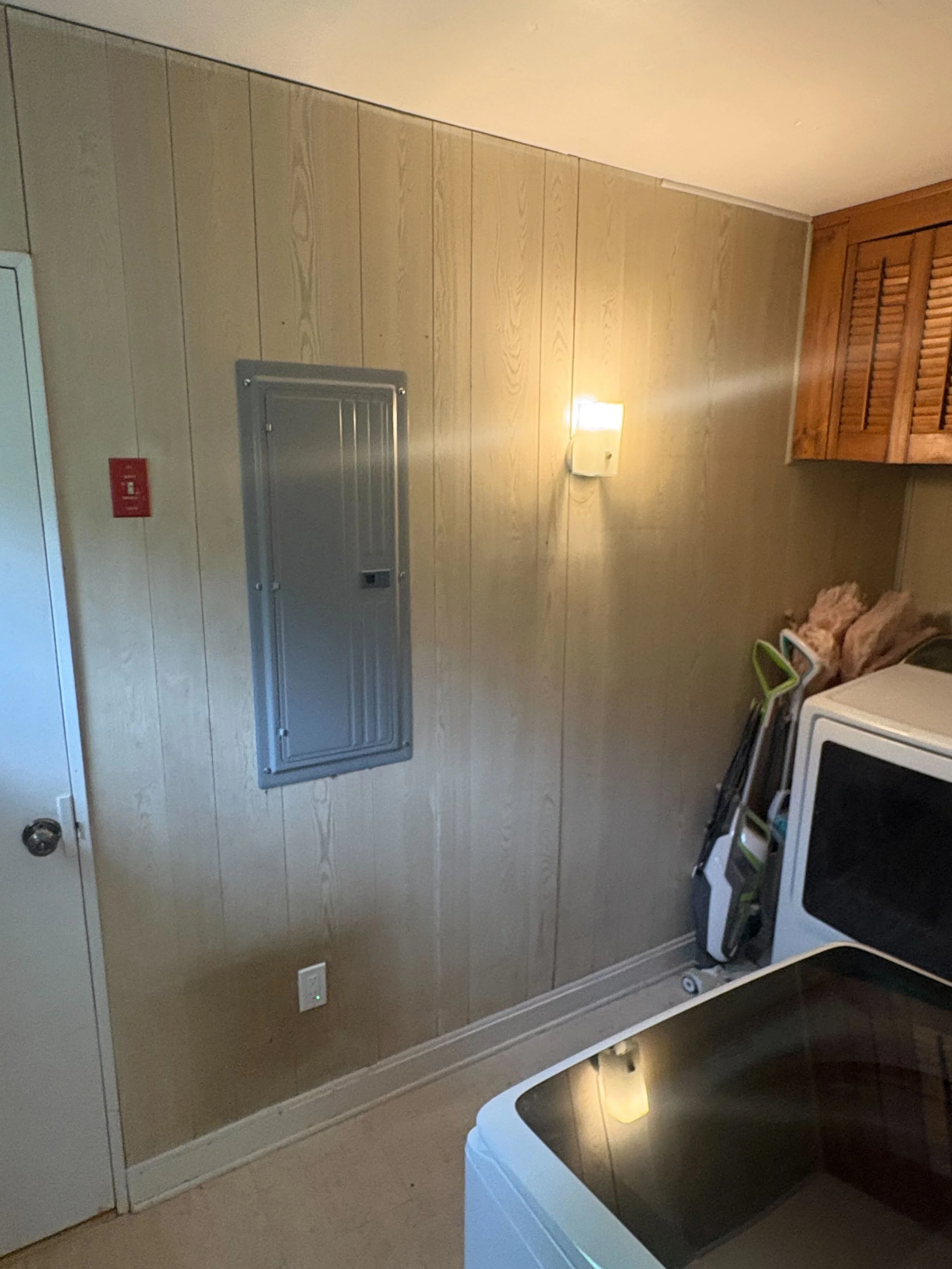

After panel was relocated we installed the paneling again so it looks like panel was always there.

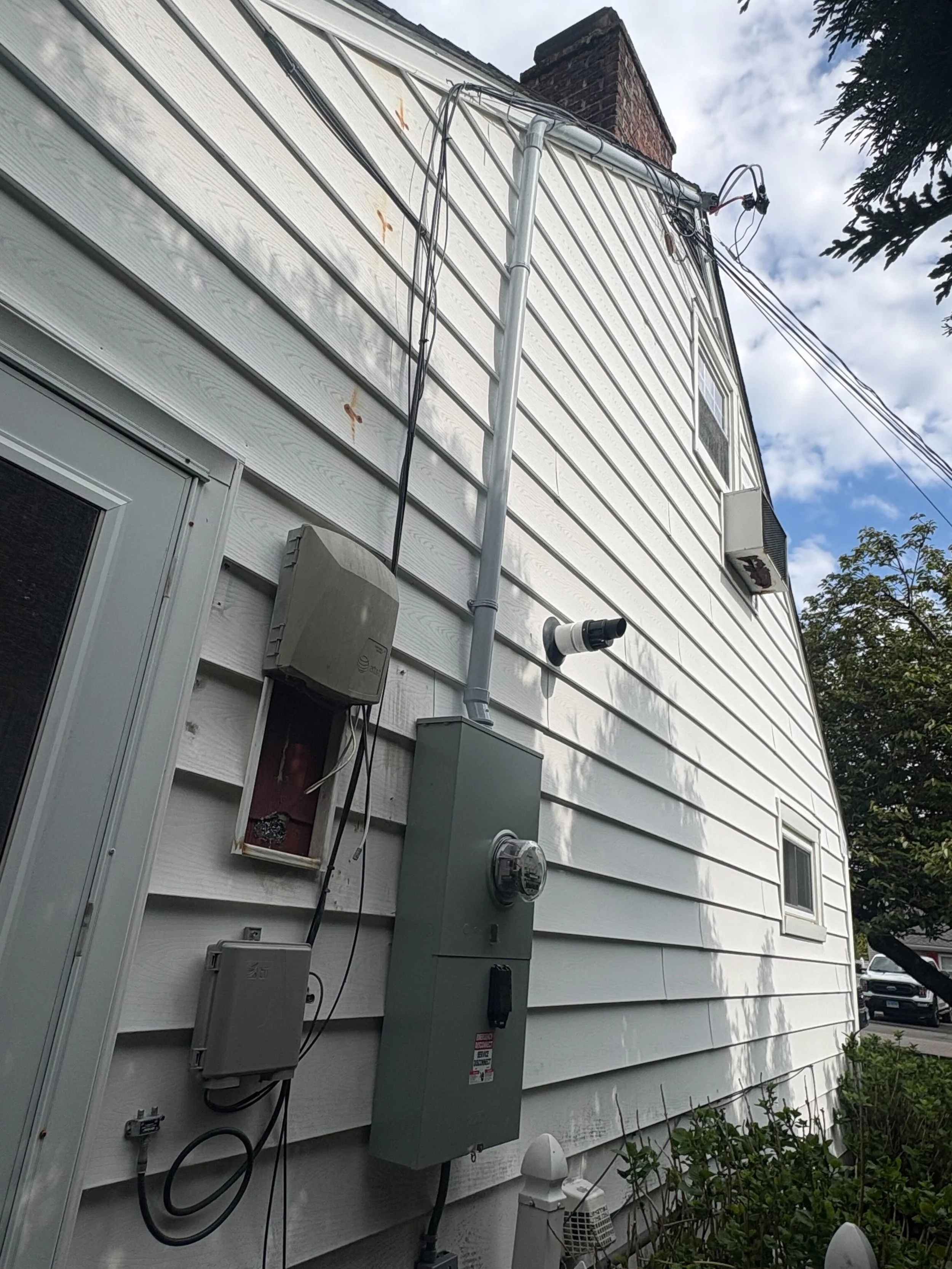

The outside portion where we upgraded to 200 amps with a new meter with an emergency disconnect
Electrical Panel Upgrades and Relocations in Stamford, Westport, or anywhere in Fairfield or New Haven County, CT
Whether you need an electrical panel replacement, electrical service upgrade, panel relocation, or help bringing an older installation up to current standards, working with an experienced residential electrician helps ensure the project is completed safely and correctly.
Homes throughout Stamford, Westport, Darien, Brookfield, Fairfield, Trumbull and surrounding Connecticut communities often require creative solutions when updating older electrical systems.
Every home is different — and thoughtful planning makes all the difference.
If you're considering an electrical panel relocation in Connecticut or wondering whether your current installation meets today's requirements, our team is always happy to evaluate options and provide guidance.
